本機適用于電子業、PET，PP，PVC、偏光片，粘膠、絕緣材料、屏蔽材料、3M.SONY，NITTO，TEST，PORON（橡膠）等特殊膠帶成型，以及LED.LCD、背光源、反光源（RW-100，RW-50，RF-188）散光膜（日本王子：90，75，60D204.D105、DB642.

CH19）、防靜電保護膜、黑白雙面膠、不透光鋁箔、增光膜、鐳射紙等的多次復合綜合加工。

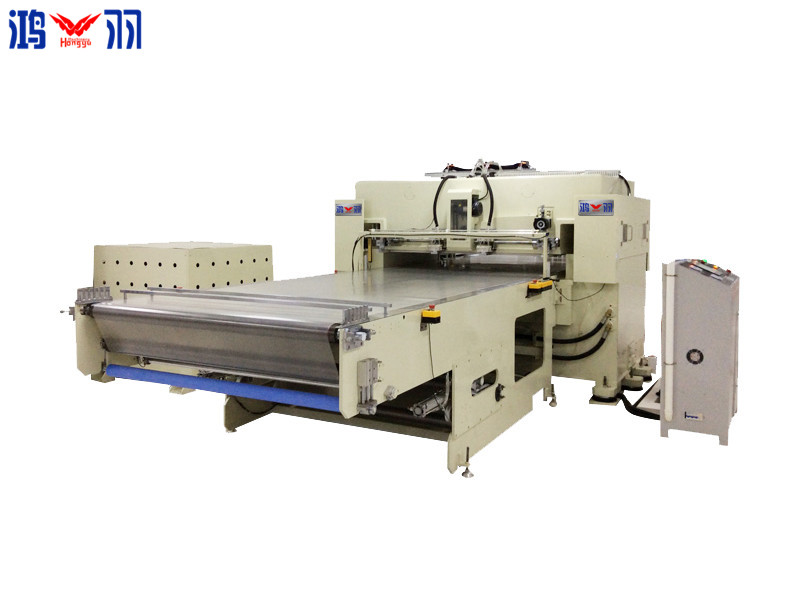

This machine is suitable for electronics industry，PET，PP，PVC，polarizer，adhesive，insulation material，shielding material，3M，SONY，NITTO.

TEST.PORON（rubber）and other special tape molding，as well as multiple composite processing of LED.LCD，backlight，anti-light source（RW-100，RW-50，RF-188）astigmatism film（Japan Prince：90，75，60D204，D105，DB642，CH19），anti-static protective film，black and white ouble-sided adhesive tape，opaque aluminum foil，brightness enhancement film，laser paper and etc.

本機精度高、噪音小、速度快、跳距準。是電子行業中理想的非金屬材料沖型設備。

，采用先進的電腦數碼拉帶系統，觸摸屏操作PLC程序控制：1送料長度可根據客戶需求自行設置；2具有油壓電腦自動監控系統，當油壓過高或過低時機器自動報警，確保機器在正常的油壓范圍內工作；3伺服送料長度與機器模切速度進行自動設置，無需調節。

整機設計：（1材料不接地；不易受潮；不受污染；2模切行程170mm，壓力穩定；3具有精度高、噪音小、跳距準、等優點。

放料部分：1放料配備獨立電機、可正、反轉；2自動張力控制器控制張力，操作方便；3放料部分采用自動感應放料，使材料不接地，裁切部分：1可安裝木板刀模；2裝有安 全光幕保護裝置，確保操作人員安 全；3刀模角度可任意調節，對位更加方便、快捷。

，送料系統：1采用進口伺服拉料，性能穩定，送料精 確；2進口絲杠、滑軌，精度高，使用壽命長，不易磨損，且不受溫度影響，穩定性更強This machine has features of high precision，low noise，fast speed and accurate hop distance.It is the most ideal non-metallic material punching equipment in the electronics industry.

Advanced computer digital drawing system and touch screen operation PLC program control are adopted in this machine：feeding length can be set according to customer's needs：with hydraulic computer automatic monitoring system，the machine automatically alarms to ensure the machine workin within the nomal oil.

pressure range when the oil pressure is too high or too low；servo feed length and machine mold cutting speed are automatically set without adjustment.

Machine design：material is not grounded，not easy to get wet or not contaminated；170MM mold cutting stroke，stable pressure；high precision，low noise，standard hop distance and so on.

Loading part：loading material is equipped with independent motor which can be forward and reverse；automatic tension contraller controls tension，which is eas to operate；loading part adopts automatic induction loading，so that the material is not grounded Cutting part：can install wooden knife mold；equipped with safety light curtain protection device to ensure the safety of operators；cutter angle can be adjsted frely.

and the alignment is more convenient and quick.

Feeding system：imported servo pull material，stable performance，accurate feedina；imported screw，slide rail，nigh precision，lona service life，not easy to wear，not affected by temperature and strong stability
